Model Training

In this section, you will:

  • Explore the Python code used to retrain the model.
  • Automate the execution of the different steps using a Pipeline.
  • Visualize the Pipeline and its results in the OpenShift AI dashboard.

⚠️ WARNING:
You will only run the initial steps of model training in the Jupyter development environment.
The full training will be executed outside of Jupyter via a Pipeline to avoid an OOM Killed error (insufficient memory).
If an error occurs, your pod will be automatically deleted and recreated. Nothing serious, but your development environment will be temporarily unavailable for a few minutes.

You have previously cloned a Git repository. In the file browser on the left, you should see a folder named after the Git project: workshop-model-training.

  1. Click on workshop-model-training to open the folder. Inside, you will find several items:
  • The Notebook labeling-extraction.ipynb retrieves the data annotated with Label Studio, downloading both the images and their corresponding annotations with bounding boxes.
  • The Notebook synthetic-data.ipynb generates random synthetic data to enrich the training dataset.
  • The Notebook transfer-learning.ipynb contains the model training code.
  • The Notebook comparison.ipynb compares the base model (which does not recognize the LEGO traffic signs) with the retrained model (which, hopefully, does).
  • The file traffic-signs.pipeline is a Pipeline generated with Elyra. Elyra provides a graphical interface that allows you to drag and drop Notebooks or Python scripts for each step and connect them to create workflows. You can run this Pipeline in OpenShift AI directly through the Jupyter interface.
  • The folder inference/ contains materials to query the models after deployment.
  • The folder utils/ contains utility functions and dependencies for model training.

Extracting Images and Annotations

  1. Click on labeling-extraction.ipynb and explore the Notebook content.

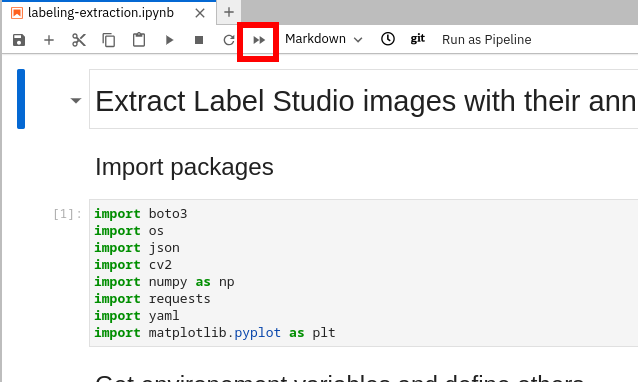

  2. Run the entire Notebook using the double-arrow icon ▶▶ in the toolbar at the top:
    run-notebook

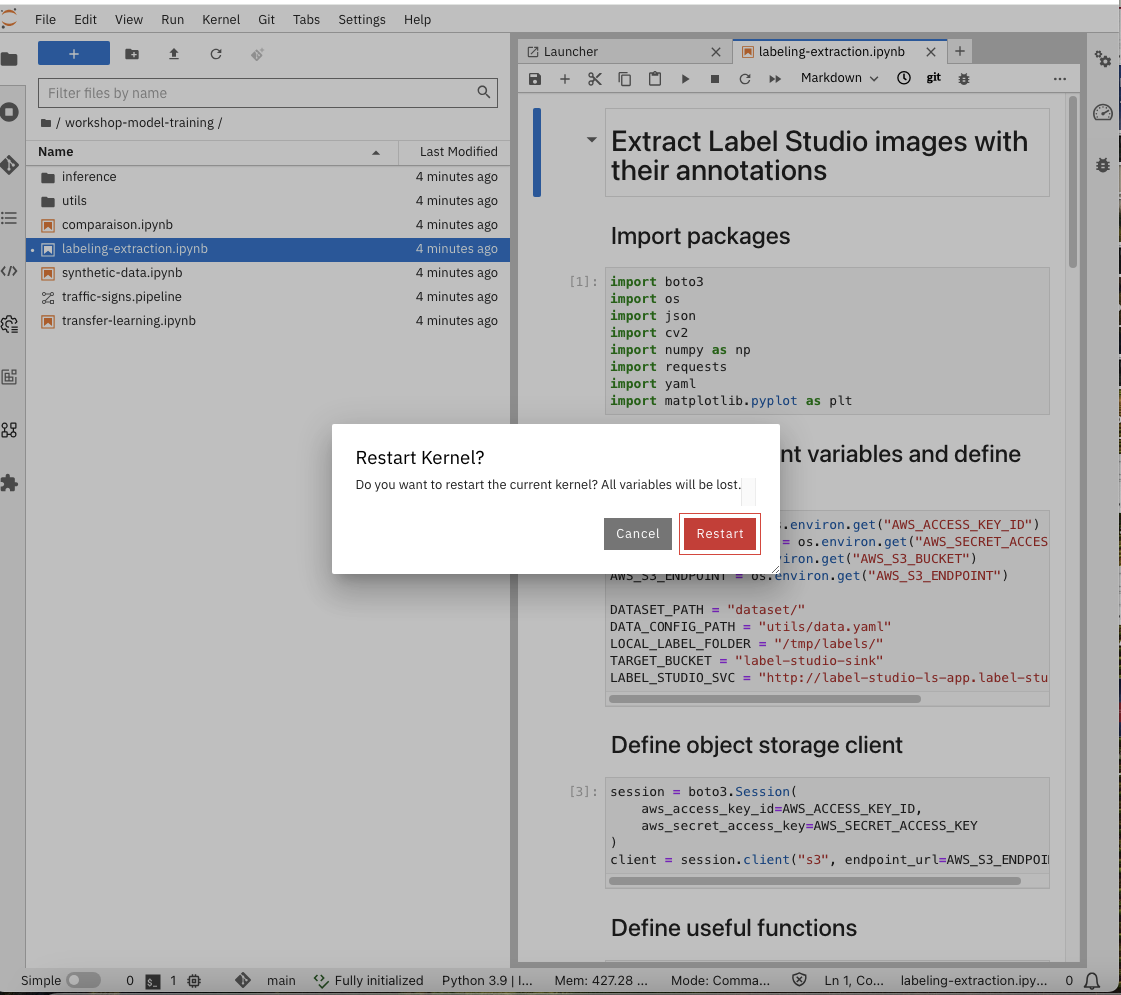

  3. Click Restart when prompted: restart-kernel You may have noticed that these scripts created a dataset directory. This directory contains two subfolders: images and labels, which hold the images and their corresponding annotations respectively.

  4. In the same Notebook, scroll down to the section Select a random image and display its bounding boxes. Then, re-run the first cell just below by clicking on it, and then clicking the arrow icon ▶ in the toolbar at the top.
    This cell selects a random image from the dataset/images folder and overlays the corresponding bounding boxes from dataset/labels, i.e. rectangles indicating the coordinates of the objects detected in the image.

Generating Synthetic Data

  1. Open the Notebook synthetic-data.ipynb.
    This Notebook generates synthetic data, i.e. artificial data used to enrich the model’s training dataset.
    To do this, we take photos of the tracks from the train’s point of view and randomly overlay cut-out traffic signs, simulating the various real-world conditions the train might encounter.

  2. Run the entire Notebook as explained previously. Take time to review the code and observe the visualization examples.

  3. You can rerun the visualization step to display other examples of synthetic data.

Examining the Model Training Step

⚠️ Do not run this Notebook! Executing it would crash your environment, as the RAM available for each participant is limited.

Simply open the transfer-learning.ipynb Notebook and review the code to understand its functionality.

Examining the Comparison Step

⚠️ Do not run this Notebook! Executing it would crash your environment, as the RAM available for each participant is limited.

Simply open the comparison.ipynb Notebook and review the code to understand its functionality.

Running the Data Science Pipeline

In this step, you will prepare the Data Science Pipeline to run outside of the Jupyter development environment and to use a GPU to accelerate model training. In our cluster, a few small shared GPUs have already been deployed and will be used to run this Pipeline.

Completing the Pipeline

  1. Open the Pipeline traffic-signs.pipeline.
    You will see the Elyra graphical interface, which allows you to create and run Data Science Pipelines. Our Pipeline was built by dragging and dropping the Notebooks from the file explorer on the left.
    This Pipeline currently has 4 steps and only 2 connections, so there is a missing link between the third step (transfer-learning.ipynb) and the fourth (comparison.ipynb).

  2. To create this connection, click on the black dot on the right side of the third step (transfer-learning.ipynb).

  3. Hold and drag it to the black dot on the left side of the fourth step (comparison.ipynb).

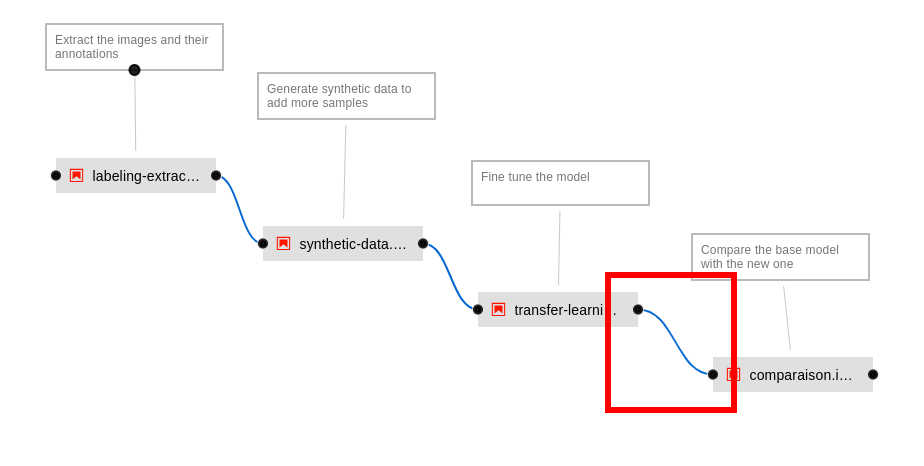

    You should then have the complete Pipeline as shown below:
    full-pipeline

Inspecting Step Properties

  1. Right-click on the second step of the Pipeline (synthetic-data.ipynb).

  2. In the menu that appears, click Open Properties. The properties will be displayed in the panel on the right.

  3. Scroll down to view the main properties:

  • Runtime Image: the container image used to run the Python code associated with this step.
  • CPU request: the amount of CPU reserved for this step.
  • RAM limit: the maximum amount of RAM allowed for this step.
  • Pipeline Parameters: the globally declared parameters, which you can enable to make them available for this step.
  • File Dependencies: the files required to execute this step. Here, the entire utils/ directory is needed.
  • Output Files: the files generated during this step’s execution, which are accessible to subsequent steps.
  • Kubernetes Secrets: secrets mounted into the container. Here, object storage access information is available as environment variables during execution.

At the top of the properties panel, you will also find two additional tabs besides Node Properties: Pipeline Properties and Pipeline Parameters. Feel free to explore them to discover the different available settings.

Allocating a GPU for the model retraining step

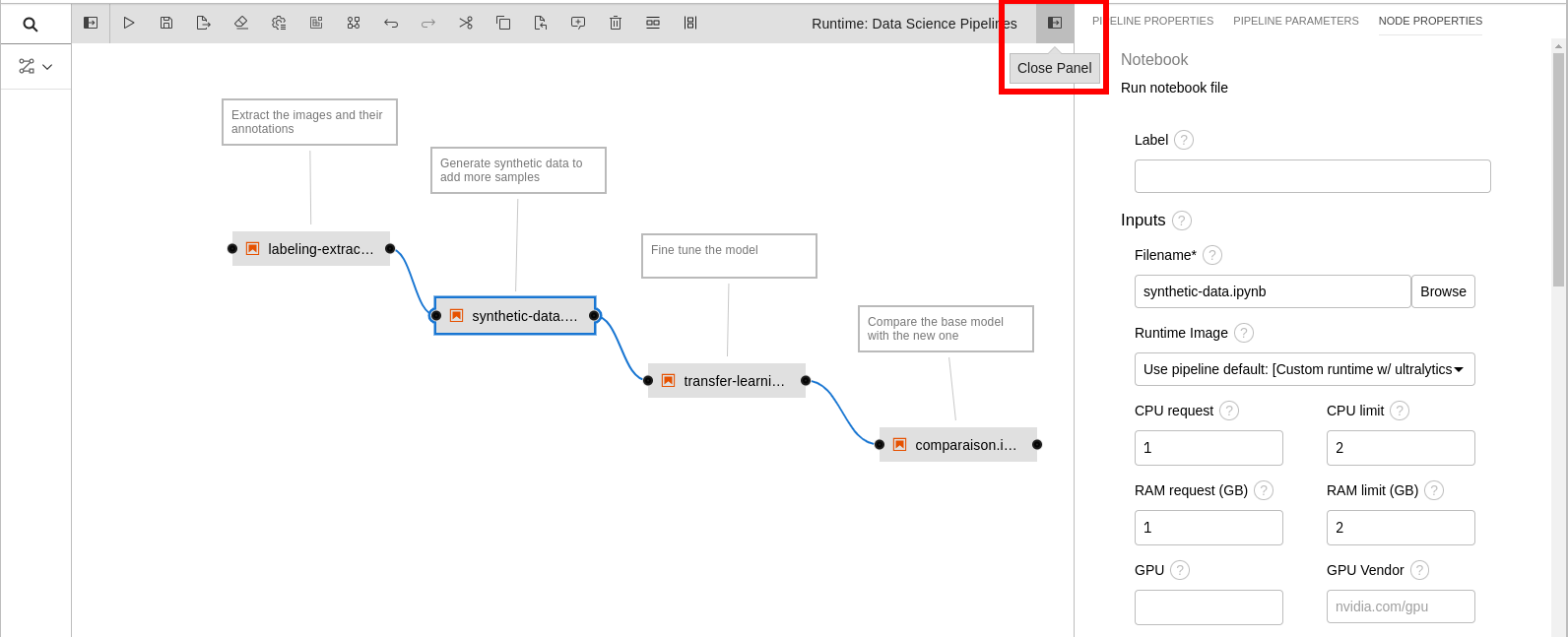

  1. Close the properties panel of the previous step.
    close-properties

  2. Now modify the third step of the Pipeline (transfer-learning.ipynb). Do not touch the previous step.
    Right-click the third step (transfer-learning.ipynb) and select Open Properties. Properties appear in the right panel.

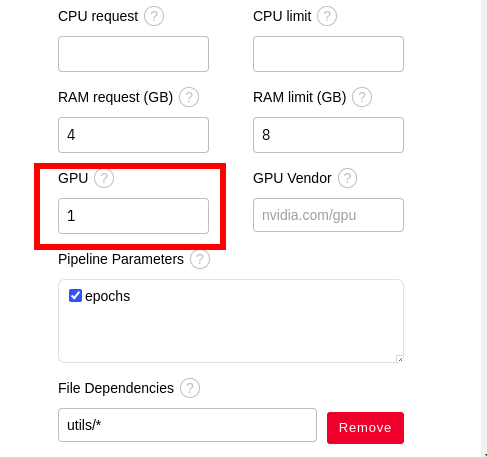

  3. Locate the GPU property and enter 1 to request a GPU for model training.
    full-pipeline-gpu-count

  4. Scroll to the bottom of the configuration panel.
    Nodes with GPUs have taints, which by default prevent containers from running on them. To allow this step to use a GPU, add a toleration:
    Click Add under Kubernetes Tolerations and fill in the fields as follows:

  • Key: nvidia.com/gpu
  • Operator: Exists
  • Effect: NoSchedule

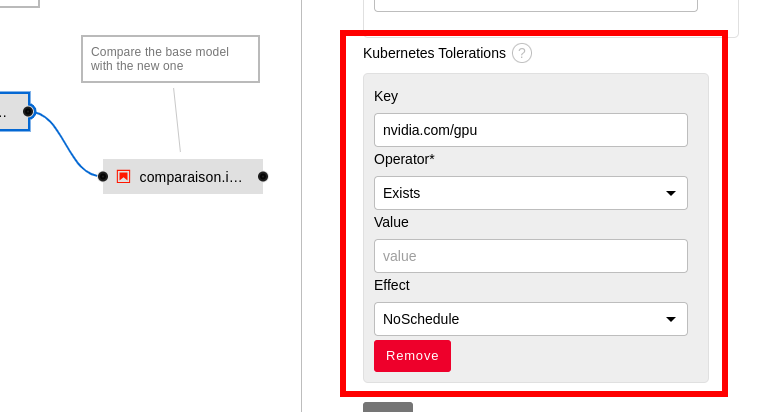

  1. At the end, your configuration should look like this:
    full-pipeline-toleration

Running the Pipeline

Now it’s time to run the Pipeline on OpenShift AI.

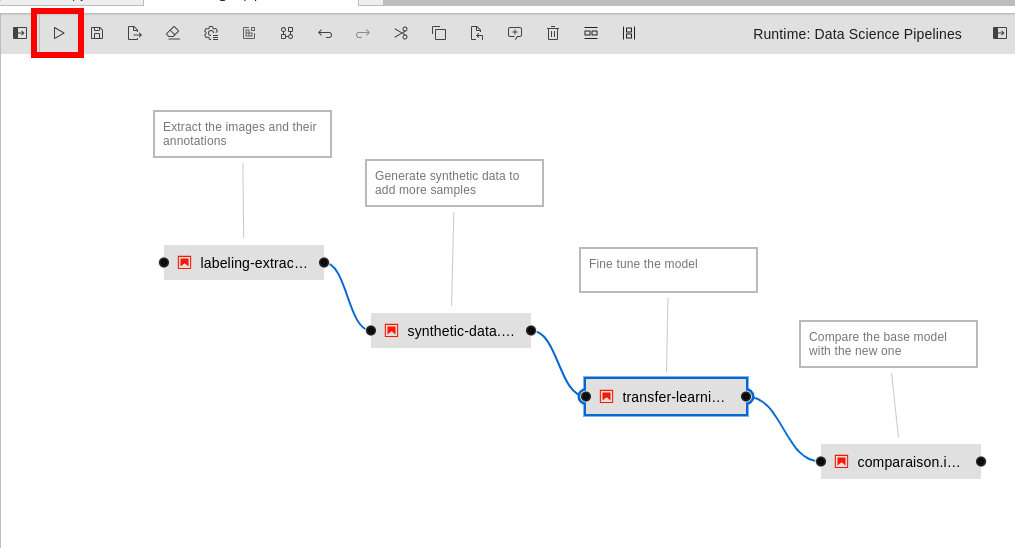

  1. Click the Run Pipeline button shaped like an arrow ▷ in the toolbar at the top: elyra-run

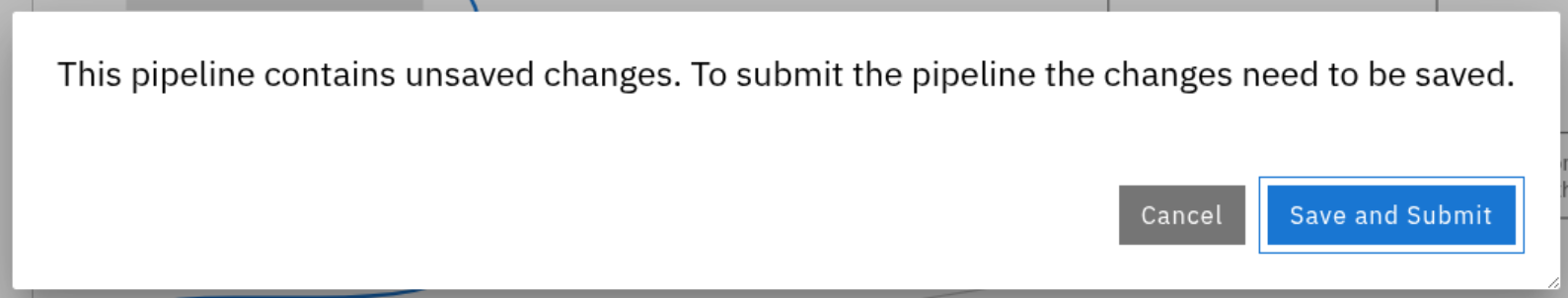

  2. If a popup appears warning you that the Pipeline has not been saved, click Save and Submit. elyra-unsaved

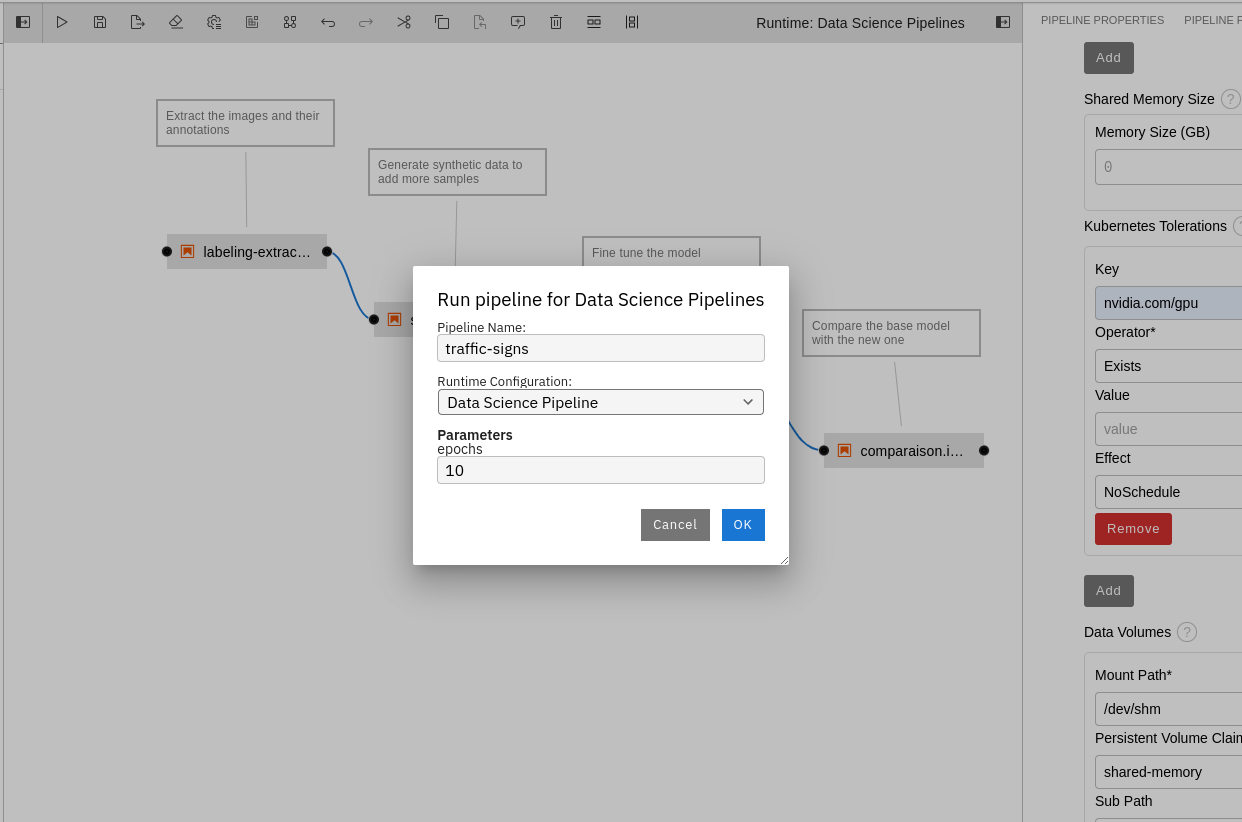

  3. In the Pipeline configuration, set the value 10 for the epochs parameter.
    elyra-run-config
    An epoch corresponds to one full pass of the algorithm over the training dataset.
    Choosing the number of epochs is crucial for good performance:

  • Too few epochs: the model may underfit, meaning it will not learn enough and remain ineffective.
  • Too many epochs: the model may overfit, meaning it will adapt too closely to the training data and perform poorly on new data.

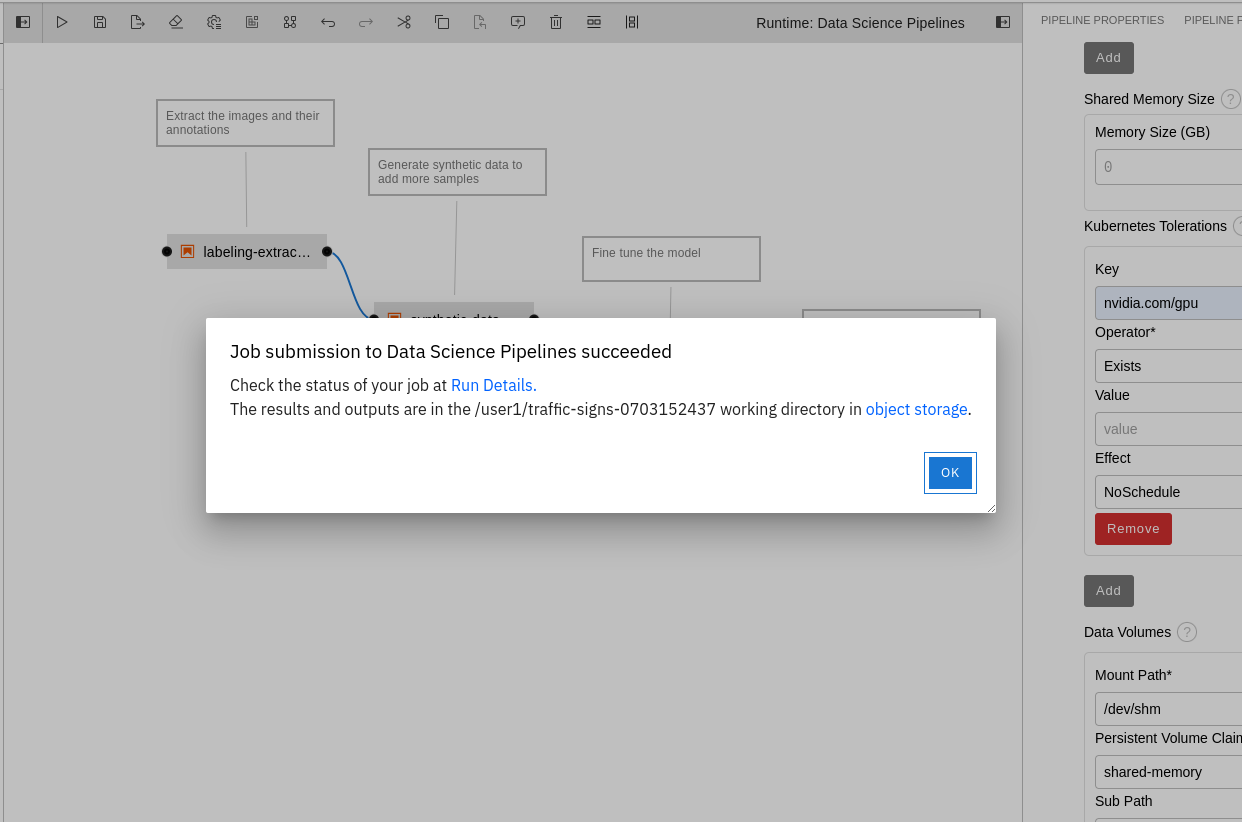

  1. After a few moments, a success popup will appear. Click Run Details to view the Pipeline execution details.
    elyra-run-success

Viewing Your Results

Checking Pipeline Runs

  1. If you missed the shortcut in the Elyra popup, follow these steps to locate your Pipeline execution info. Otherwise, skip to the next step.

    1a. Go back to the OpenShift AI dashboard:
    https://rhods-dashboard-redhat-ods-applications.apps.crazy-train.sandbox1781.opentlc.com

    1b. In the left menu, click Experiments, then Experiments and runs.

  2. Select the experiment associated with your Pipeline.
    If you kept the default name, it is called traffic-signs and appears first.

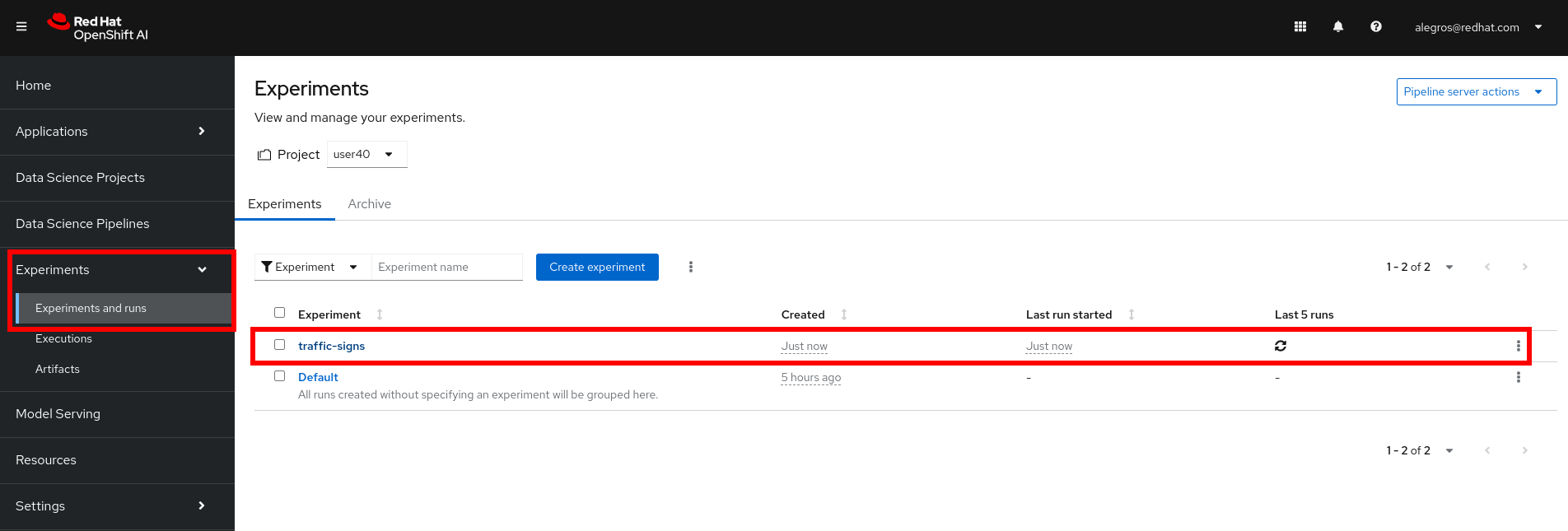

    experiments-and-runs

  3. Click the current run to view the execution status. It usually appears first in the list, with the same name as the Pipeline followed by a number.

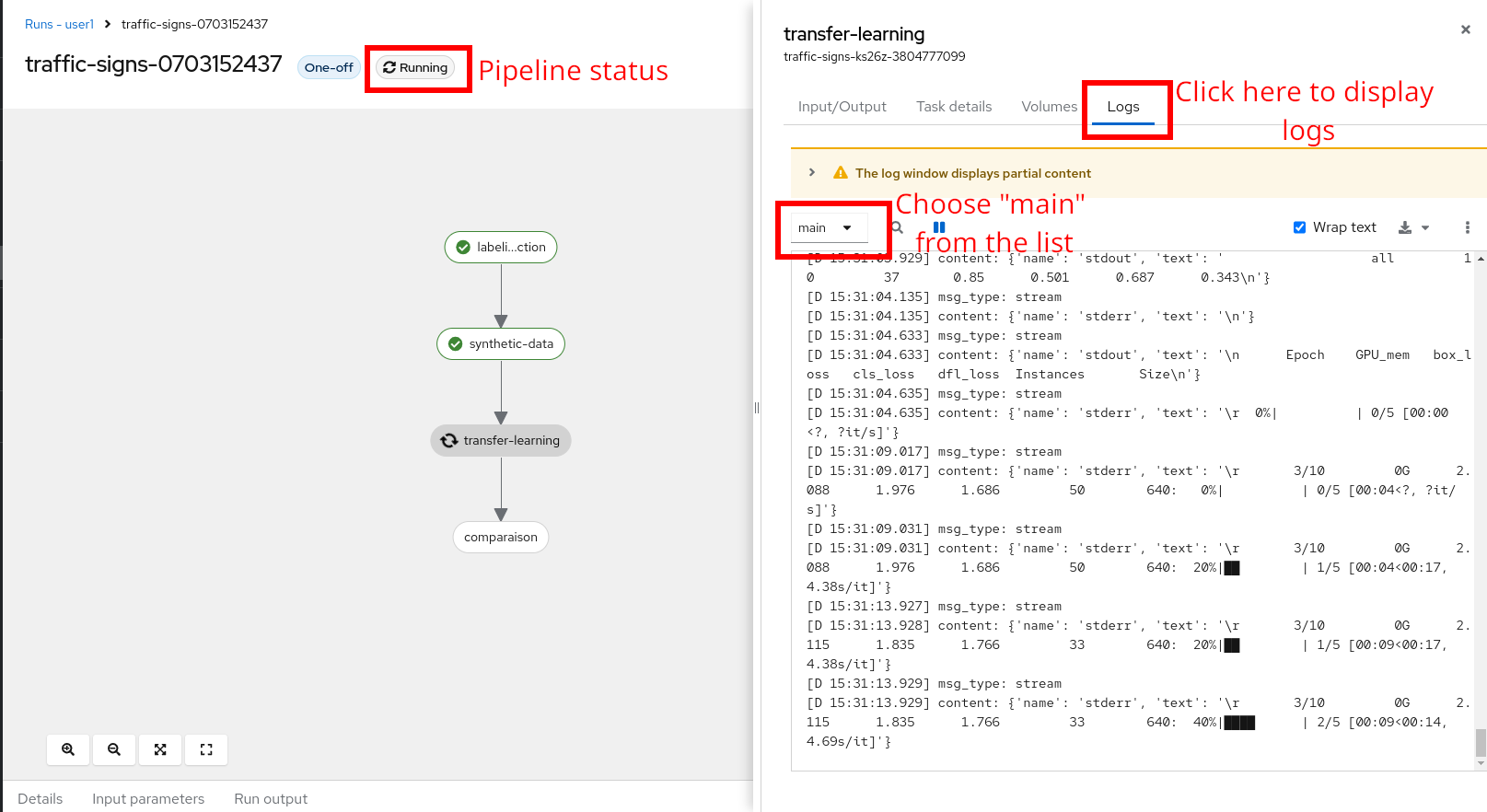

  4. Clicking a Pipeline step opens a side panel on the right showing details, including logs in the Logs tab.

  5. Select main from the dropdown to see the logs from the main container for that step.
    pipeline-run-logs

  6. Wait until all Pipeline steps are complete and marked in green.
    You should get a result similar to this:
    pipeline-run-succedded

Retrieving Pipeline Outputs

All Pipeline outputs are saved in MinIO object storage.

  1. Click this link to the MinIO console: https://minio-console-minio.apps.crazy-train.sandbox1781.opentlc.com.

  2. Log in using the username that was assigned to you at the start of the workshop. The password is minio123.

  3. You should see several buckets. Click the one matching your username:

    • You will find a results.csv file containing metrics from model training, which you can download.
    • You will also find a folder corresponding to your Pipeline, starting with traffic-sign.

  4. Open this folder. You will find HTML files, Notebooks (.ipynb), and archives.

  5. Click the comparison.html file. A menu will appear on the right. Click Download and open the file locally in your browser.

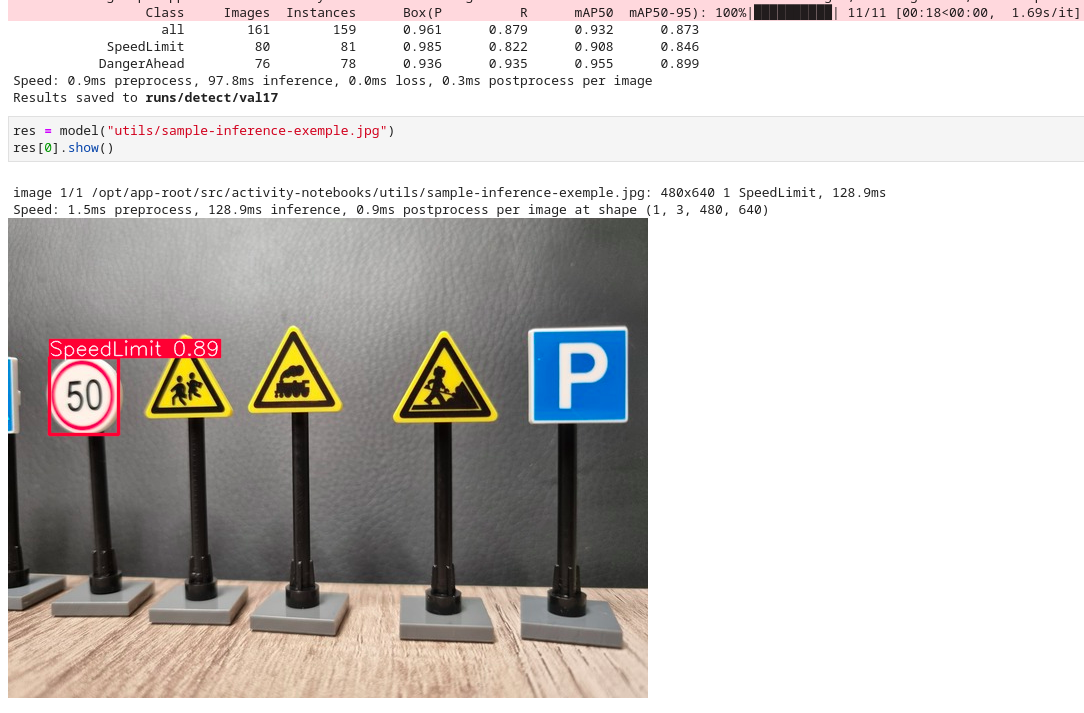

    output-base-model
    output-new-model

  6. Compare the base model results with the new model. In this example, we lost some accuracy on classical traffic signs in the original dataset, but the new model can now detect LEGO signs that were previously unrecognized.
